  1. Silvanet Suite
  2. Site Management App

Site details

The Site Details page is the key page in the Site Management app. It provides access to Site planning tools, current state of Site devices and to view environmental data from Sensors.

PreviousSites viewNextDevice overview

Last updated 1 month ago

Was this helpful?

User role

The Site details page is accessible from the , and .

Use this page to do the following:

  • Plan Site coverage estimations: The Planning tool is used to generate a coverage estimation for the Site.

  • Monitor the Site: Environmental data provided by each deployed Wildfire Sensor is provided.

  • Locate source of fire alerts: Locate which Wildfire Sensor(s) has detected a fire. GPS coordinates are provided to identify where the Sensor is that triggered a fire alert.

Creating a Site

Site ID

After a Site is created, it is assigned a Side ID which cannot be changed. You can find the Site ID in the URL of the Site as well as part of breadcrumbs on a Site details page.

Site name and Organization

The Site name and Organization to which the Site belongs is shown in the line below the Site ID.

Changing Site name

Ellipsis menu

The ellipsis menu provides access to Site tools:

Edit Site Name

Select to edit or rename the Site. As noted above, the Site ID cannot be changed.

Renaming a Site

Open Planning Tool

Select to open the Planning Tool. This tool is used to rapidly generate a coverage estimate for the Site. It estimates the amount and placement of Silvanet devices required to provide ultra-early fire detection.

The Planning tool generates a set of deployment Packets available in the Silvanet Deployment app.

Planning tool

Open Packet Editor

If any of the resulting Packets need to be modified, open the Packet Editor to make modifications. Packets can be added or deleted as required.

Packet editor

Number of deployed devices

Under the Site name, you can quickly see the current state of the deployed Silvanet Border Gateways, Mesh Gateways and Wildfire Sensors.

Status of the devices can be one of the following states:

  • Active - Device connected to the Silvanet Cloud and is transmitting messages.

  • Inactive - Device not sending data to the Silvanet Cloud for 12 hours.

  • Fire Alerts - Sensor detected a fire and has sent a Fire alert to the Silvanet Mesh Network.

Embedded map view

An embedded Site map allows you to easily navigate around the Site and get an overview of the Site's terrain without leaving the Site details page.

Use the tools to expand the map, toggle on/off 3D Map View, Fire Risk View and more.

See Also

Devices details list

The Device overview section lists all deployed devices in a Site.

Devices are sorted into Active, Inactive, Fire Alert as well as Calibrating.

Alerts and warnings

Devices are listed in a compact list sorted by device type. If a device icon shows an alert or warning, troubleshooting messages (alerts and warnings) are displayed when a device listing is expanded.

See Also

Sensor data

For Sensors, expanding a Wildfire Sensor in the list displays the data sent from the Sensor.

See Also

Device info

The Device Info link opens the Technical details page which displays device technical information.

See Also

For more information, see .

For more information, see .

.

to generate a coverage estimation for the Site

to edit Packets created for the Site.

For more information, see .

For more information, see and .

For more information, see .

For more information, see .

For more information, see .

For more information, see .

For more information, see .

Create a Site
Coverage estimation
Planning tool tutorial
Map view
Device overview
Wildfire Sensor data
Device info tabs
Edit or rename the Site
Open the Planning tool
Open the Packet tool
Packet editor
Dashboard
Sites view
Map view
Rename a Site
Rename a Site

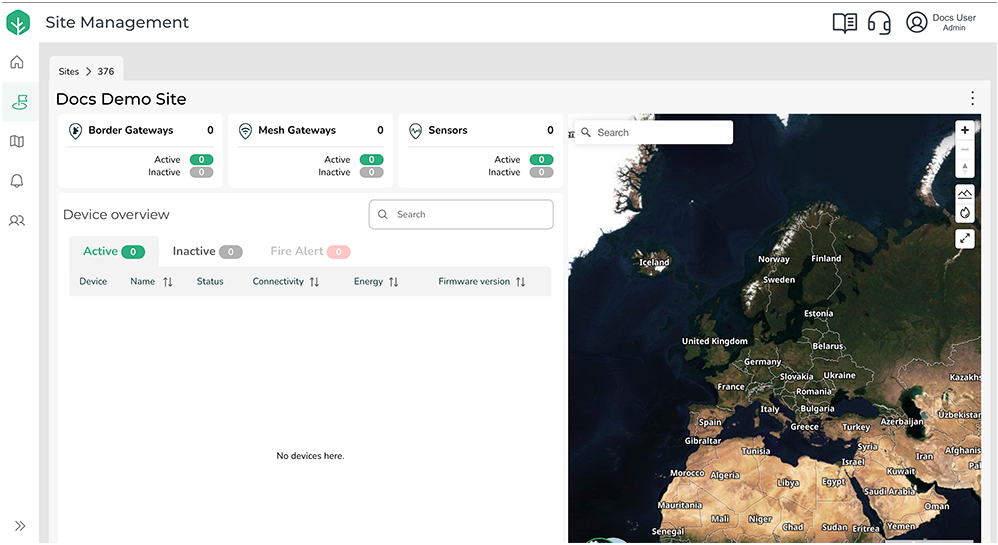

Default Site Details page
Site ID shown in the Breadcrumbs line

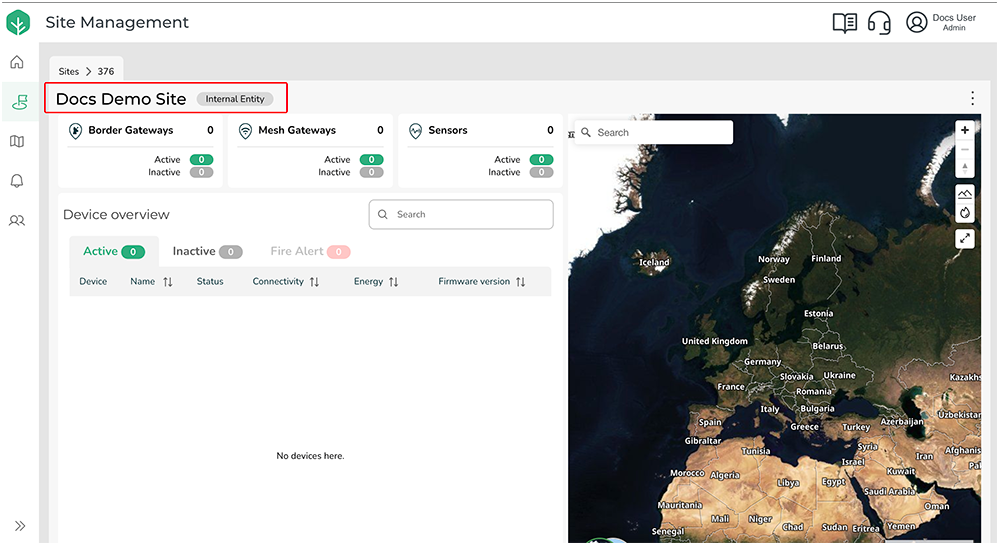

Site name and organization

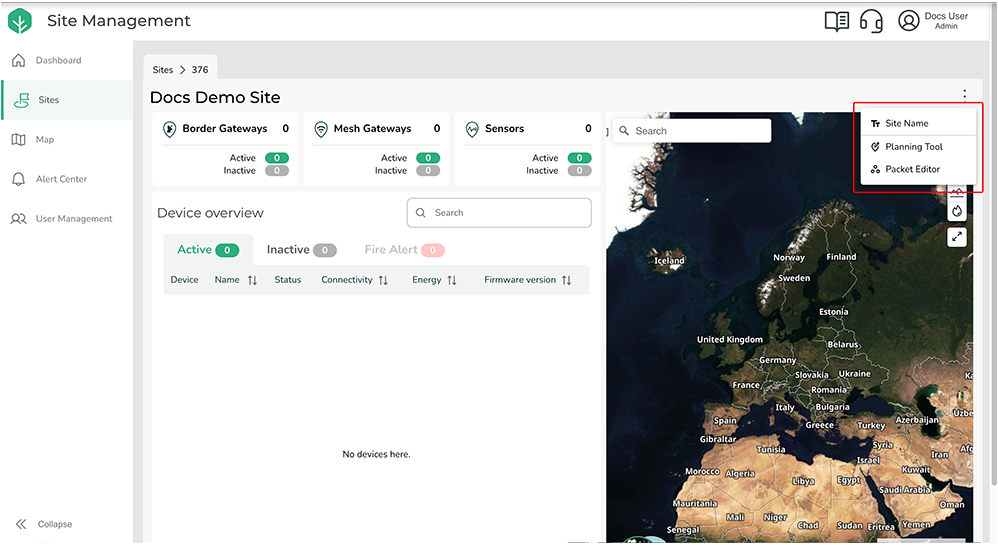

Site ellipsis menu

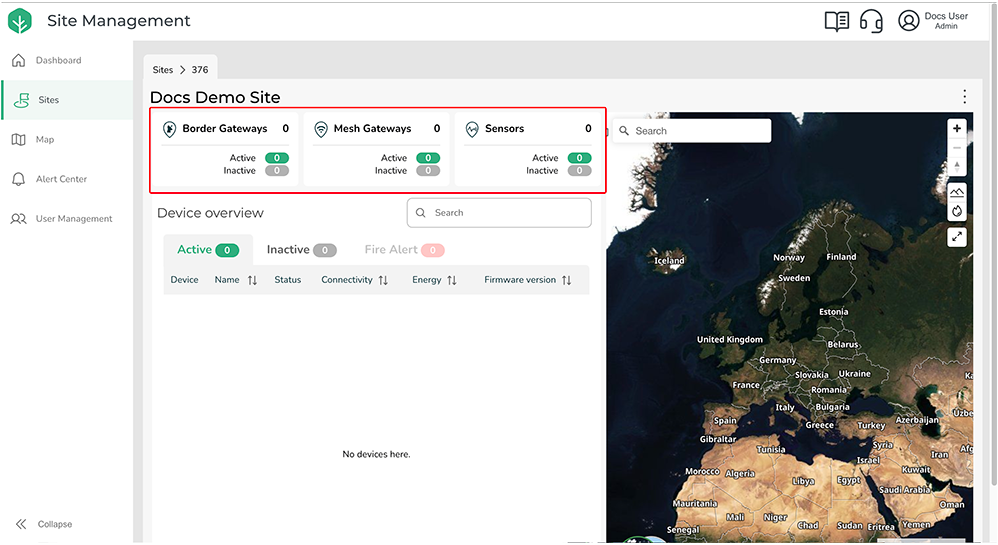

Number of deployed Gateways and Sensors
Embedded map of the Site

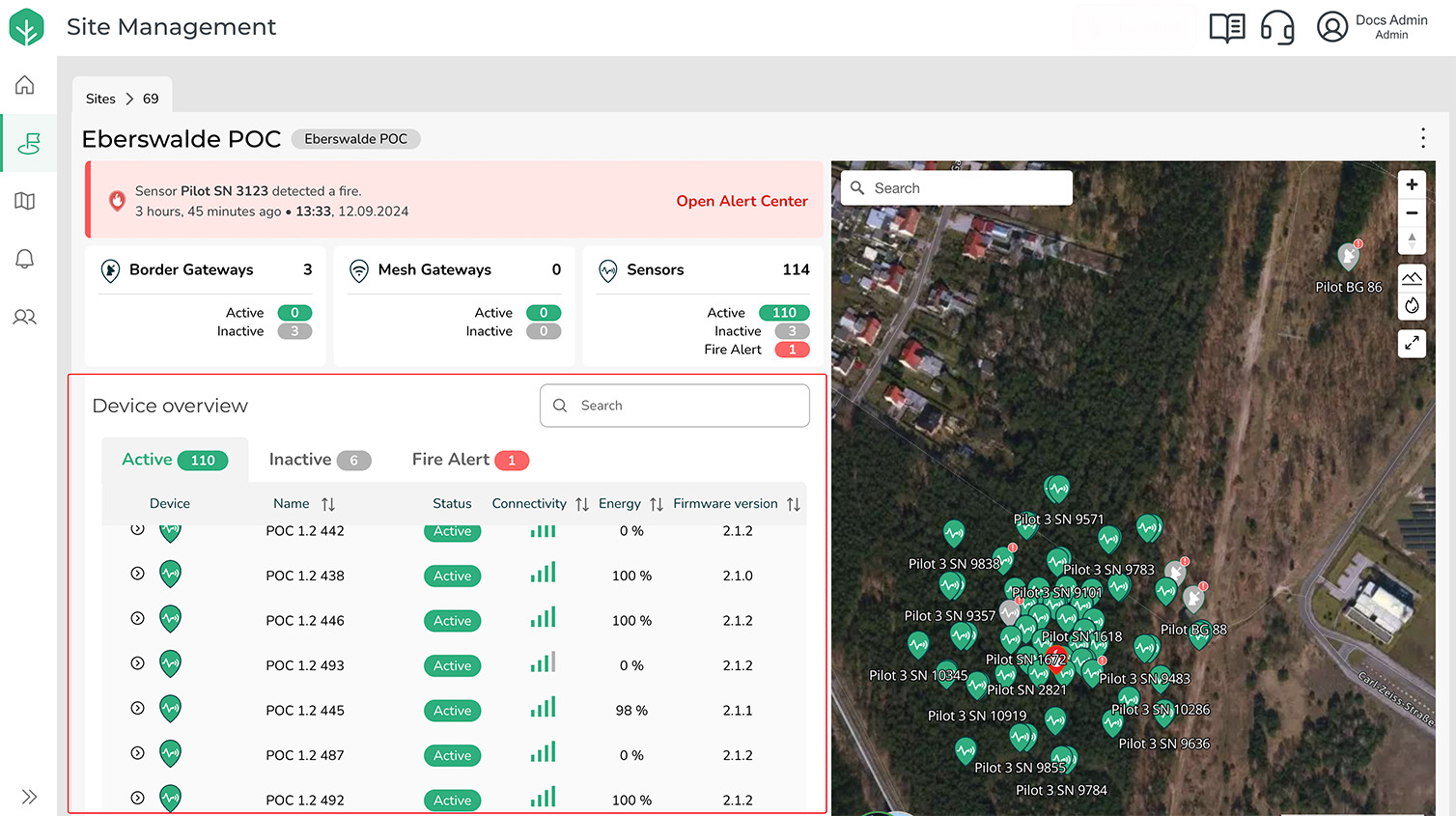

Device overview

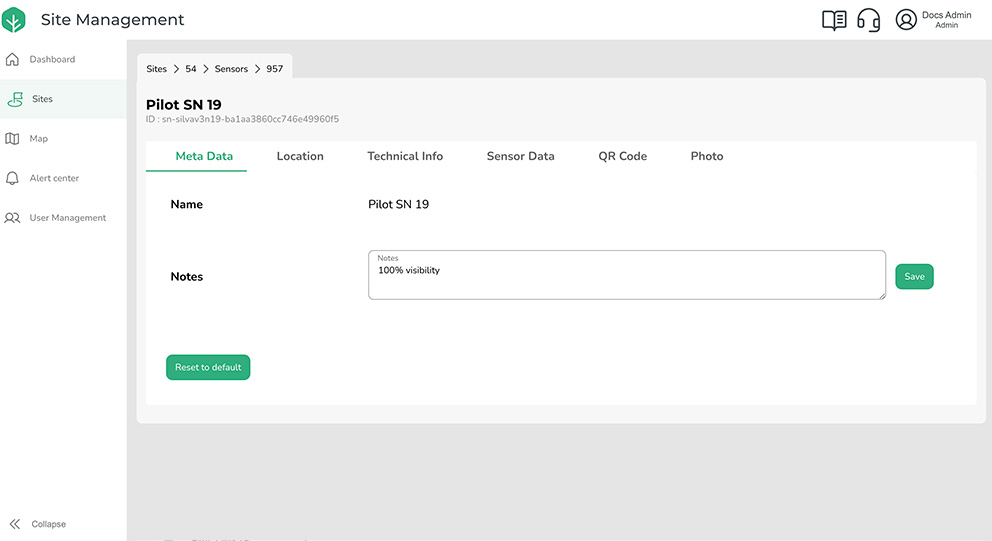

Device details tabs
